F540 CIJ
×
Product Introduction
FASTJET F560 Series Small-Character Inkjet Printer offers 3 printing modes (high-speed, standard, high-quality) for free switching based on coding requirements.Optional nozzle apertures: 40/50/60/70μm, enabling wider applications.
Product Features
ALL IN ONE主板
喷印内容丰富多变
优化升级的喷头
友好的人机交互界面，操作简单易上手
丰富的拓展接口，满足设备互联、信息

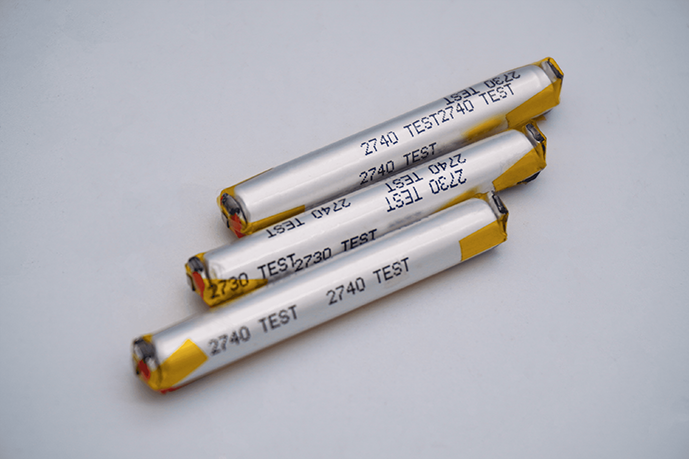

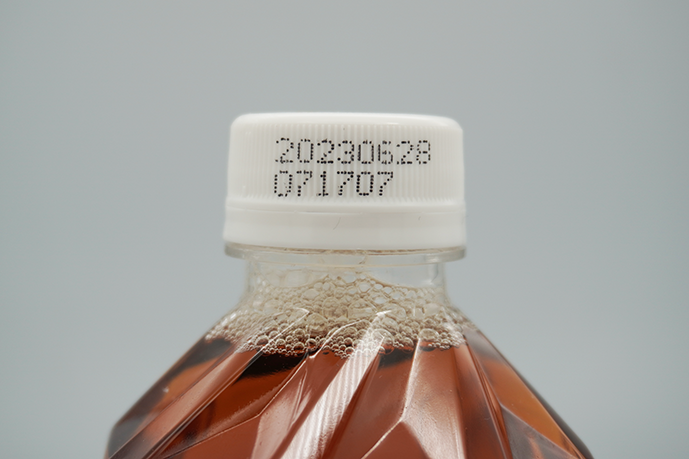

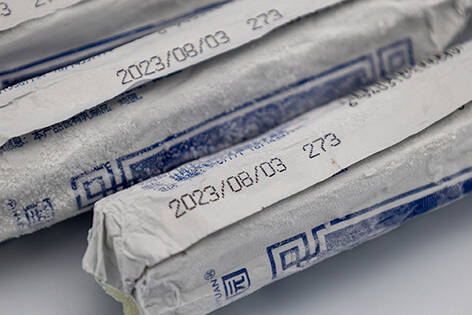

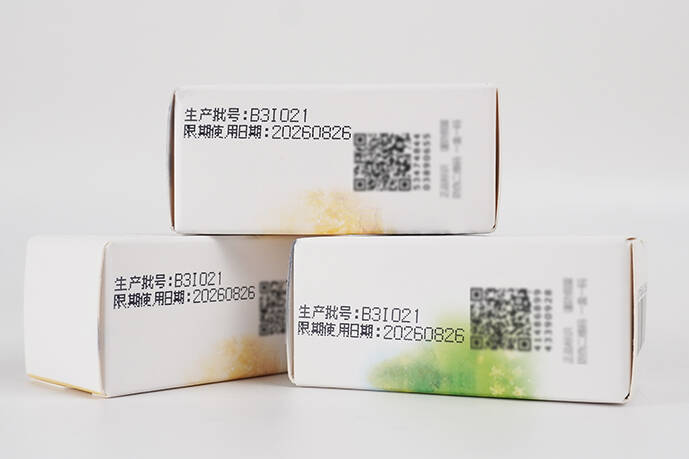

Printing Effects
Product Parameters
Technical Parameters
| F540 Configuration and Parameters | |
| Nozzle Diameter | 60/70um |
| Maximum Vertical Printing Dot Matrix | 25 |
| Message Editing | WYSIWYG, full Pinyin input for Chinese |
| Languages | Chinese, English, Arabic, German, French, Portuguese, Spanish, etc. |
| Printing Modes | Single-print, continuous printing, counting print, meter-count printing, full-function reciprocating printing |
| Printing Quality | 标准、高质量 |
| Protection Rating | IP54, 可选 IP55 |
| Communication Ports | USB、optional serial port |
| Ink System | 750ml/375ml cartridge-based dye ink，详见墨水清单 |
| Flexible Tube | Length: 2700mm, Diameter: 21mm, Bend Radius: 150mm, Optional Length: 5000mm |
| Printing Height | 1.2-15mm |
| Maximum Printing Speed | 320m/min |
| 非接触喷印距离 | 2-15mm |
| Input System | American keyboard layout |
| Optional Dot Matrix Fonts | 5x5, 7x4, 7x5, 9x6, 11x8, 16x11, 24x16, 32x22, 6x5, 9x6 (粗体), 11x8 (粗体), 塔型字体 |
| Operating Temperature | 5-45 °C |
| User Fields | 二维码, 条形码, 图案, 时钟, 计数器, 班次, 外部数据等 |
| Electrical Requirements | 200-240VAC, 50Hz |
| Power Consumption | Rated Power 150W |
| Weight | 净重：27kg, 毛重：45kg (包含配件和包装箱) |
| Optional Accessories | 正负压泵, 三色报警灯等 |

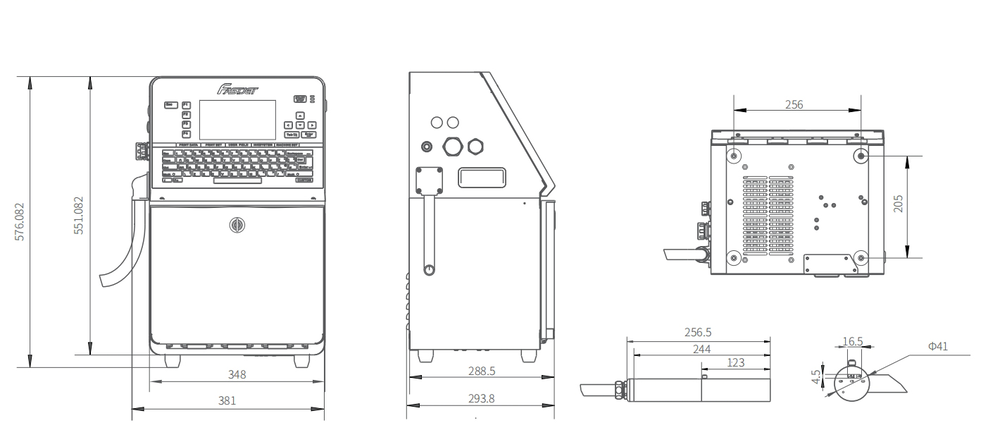

Product Dimensions (Unit: mm)
