F560 CIJ
Product Introduction

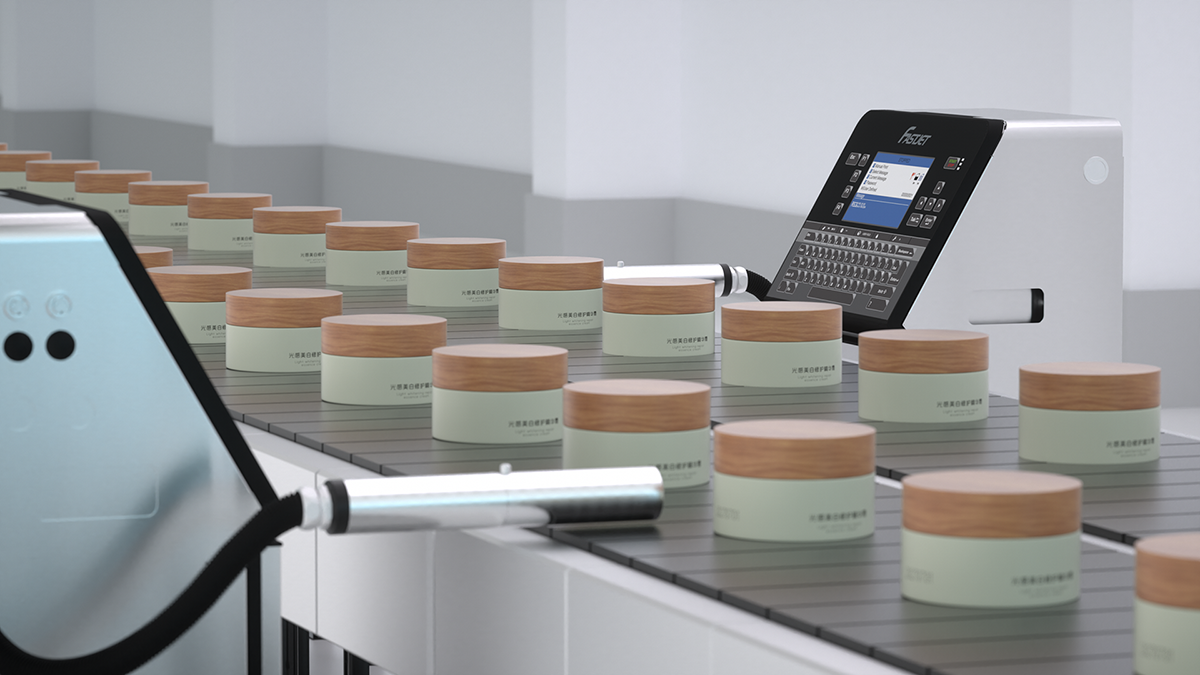

Fastjet F560 series small character inkjet printer offers three printing modes: high-speed, standard, and high-quality, which can be switched freely according to coding requirements. It supports nozzle diameters of 40/50/60/70μm, expanding its application range.
Product Features
IP55 protection rating for dust and water resistance, improving machine stability
7 to 32-dot Chinese character library, supporting up to 5 lines of printing
Equipped with 7x4, 7x4.0, 6x5, 6x5.0 font sets for high-speed production lines
Finer printing fonts with faster speed, suitable for precision marking on miniaturized products

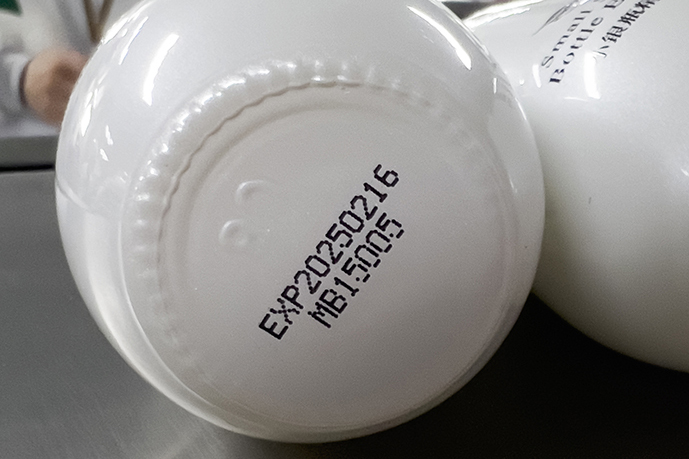

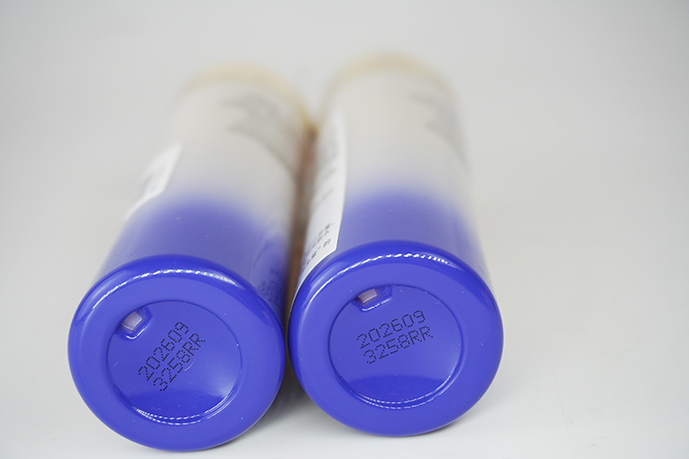

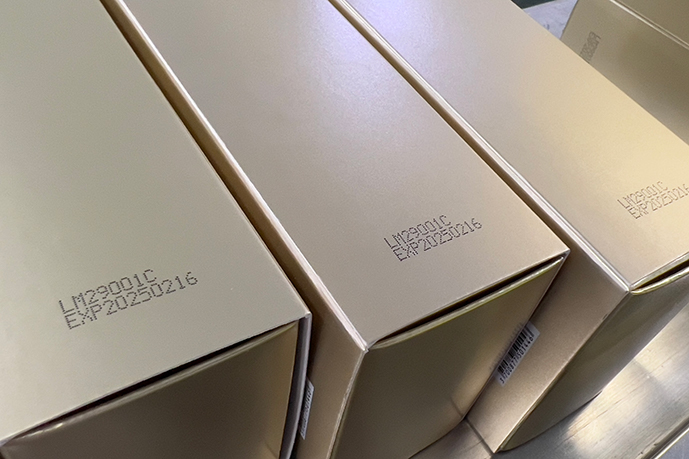

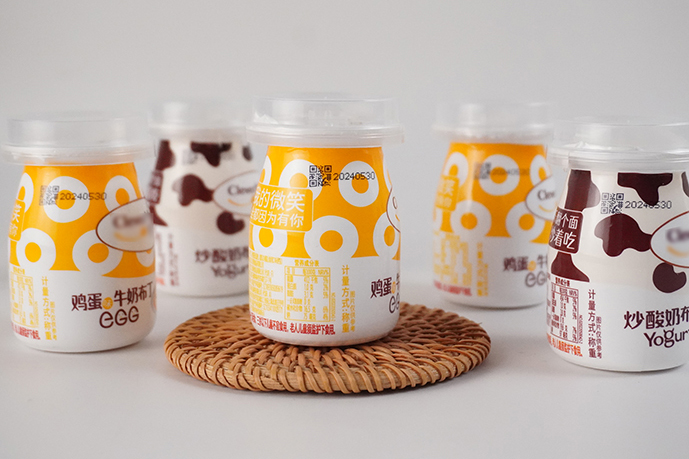

Printing Effects
Product Parameters
Technical Parameters
| F560 Configuration and Parameters | |
| Nozzle Diameter | 40/50/60/70um |
| Maximum Vertical Printing Dot Matrix | 34 |
| Message Editing | WYSIWYG, full Pinyin input for Chinese |
| Languages | Chinese, English, Arabic, German, French, Portuguese, Spanish, etc. |
| Printing Modes | Single-print, continuous printing, counting print, meter-count printing, full-function reciprocating printing |
| Printing Quality | Standard, high-speed, high-quality |
| Protection Rating | IP54, optional IP55 |
| Communication Ports | USB、optional serial port |
| Ink System | 750ml/375ml cartridge-based dye ink |
| Flexible Tube | Length: 2700mm, Diameter: 21mm, Bend Radius: 150mm, Optional Length: 5000mm |
| Printing Height | 1.2-15mm |
| Maximum Printing Speed | 520m/min (40μm model, printing single-line 5-dot matrix with 0.42mm column width) |
| 非接触喷印距离 | 2-15mm |
| Input System | American keyboard layout |
| Optional Dot Matrix Fonts | 5x5，7x4，7x5，9x6，11x8，16x11，24x16，32x22，6x5，9x6 (bold), 11x8 (bold) tower fonts |
| Operating Temperature | 5-45 °C |
| User Fields | QR codes, barcodes, patterns, clocks, counters, shifts, external data, etc. |
| Electrical Requirements | 200-240VAC, 50Hz |
| Power Consumption | Rated Power 150W |
| Weight | Net Weight: 27kg, Gross Weight: 45kg (including accessories and packaging) |
| Optional Accessories | Positive pressure pump, three-color alarm light, etc. |
Product Dimensions (Unit: mm)
