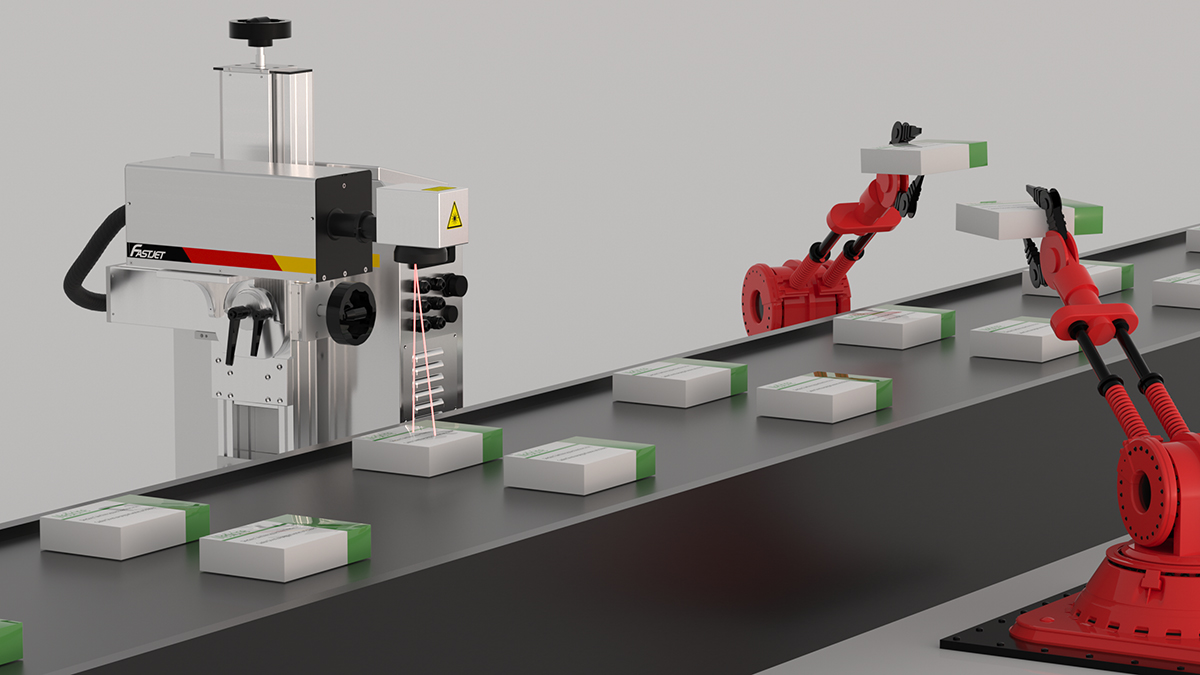

F8500U系列紫外激光喷码机
Product Introduction
FASTJET F8500U系列3W、5W和10W紫外机型采用355nm紫外激光器研发而成，由于其聚焦光斑极小且对材料的机械变形与加工热影响微乎其微，因而特别适合进行超精细打标、特殊材料打标，如烟草、医药、电子元件、金属表面镀层打标，玻璃器具表面打孔等，是对打标效果有更高追求客户的首选产品。
Product Features
定制化光束转向装置（BTU）,轻松实现各角度打印安装
聚焦光斑小，热影响区小，大幅度降低对包装的破坏
紫外波长激光束可以实现HDPE/LDPE包装的高速移动标识
超高速性能，打标速度可高达150,000个产品/小时

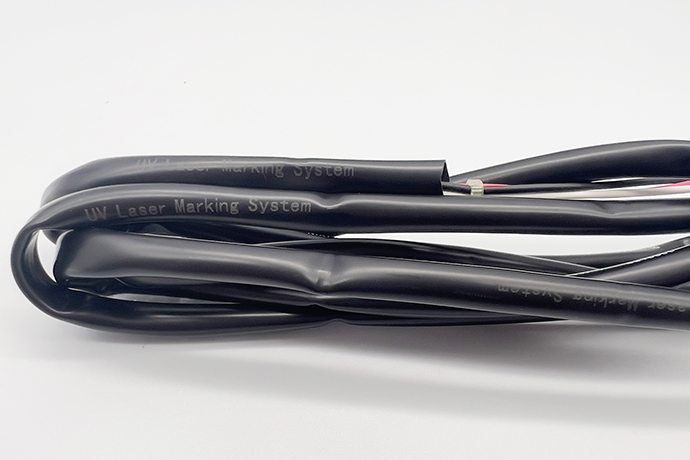

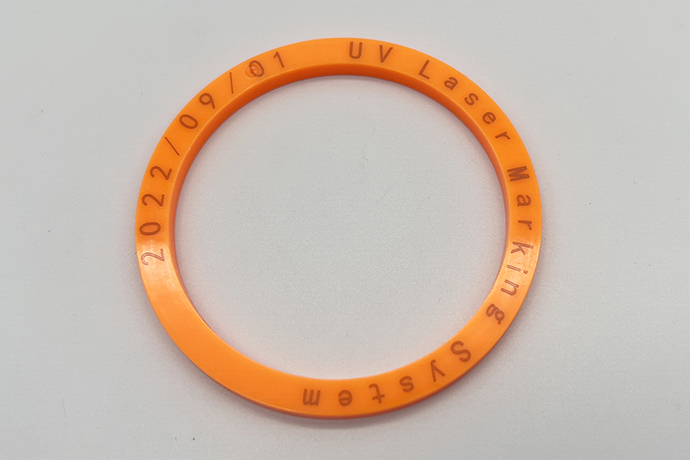

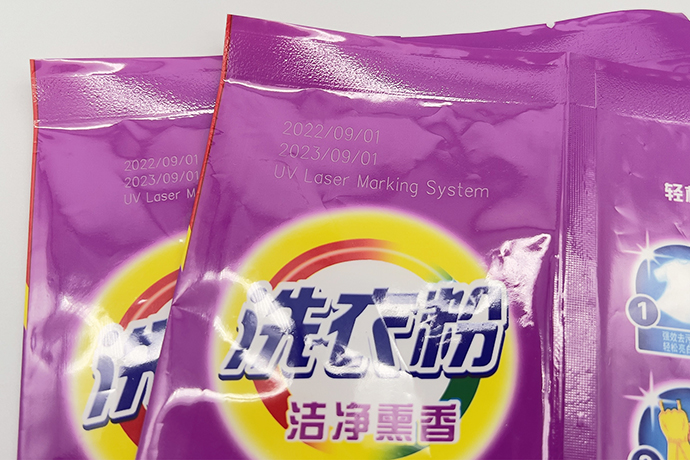

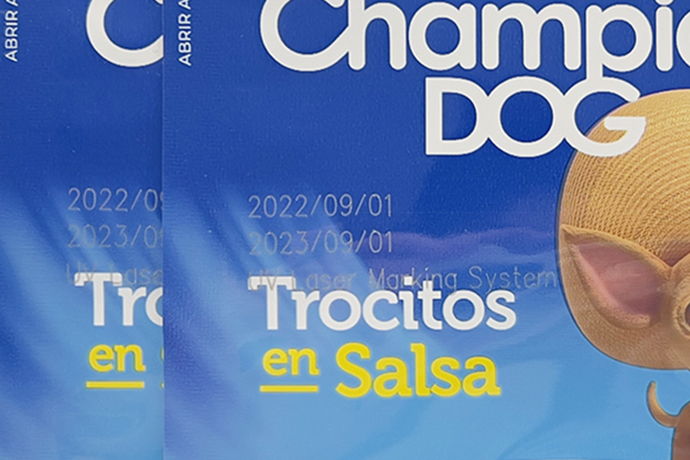

Printing Effects
Product Parameters
Technical Parameters
| F8500U Series Configuration and Parameters | |
| Marking Speed | Up to 2000 characters/second |
| Production Line Speed | Up to 3400 mm/second |
| Optional Lenses | Standard: F160 (110x110) 可选 F100（70x70），F210（140x140），F254（170x170）， F330（220x220） |
| Wavelength | 355纳米 |
| Marking Formats | Machine-readable codes (OCR, Data Matrix, etc.) Barcodes: Code128A、Code128B、Code128C、Code39、Code93、QR-Code、 Date Matrix，Aztec-Code，Han Xin-Code Graphics, logos, and symbols Straight, circular, arc, inverted, rotated serial numbers, and batch numbers Automatic date, layered, and time coding with real-time clock Dot-matrix mode provides faster speed for two-dimensional code printing than traditional grid mode |
| Beam Deflection | High-speed digital galvanometer scanner controls |
| User Interface | Personalized touch-screen control with intuitive |
| Laser Tube | 固体UV激光器 |
| Communication | UDP、TCP/IP and RS232 |
| Integration | Encoder and product detection trigger input 4 inputs/4 outputs for start/stop signals, machine/operator interlocks, alarm output Excluding safety circuits Flexible beam transmission options (beam extension device/beam steering device) |
| Electrical Requirements | 110-240VAC，~50/60Hz，1PH，0.7kW |
| Cooling System | 水冷 |
| Operating Environment | Temperature: 5-40°C (41-104°F) Humidity: 10%-90%, non-condensing |
| Approximate Weight | Net weight of entire machine：28kg |
| Note: Maximum marking speed and production line speed depend on application | |

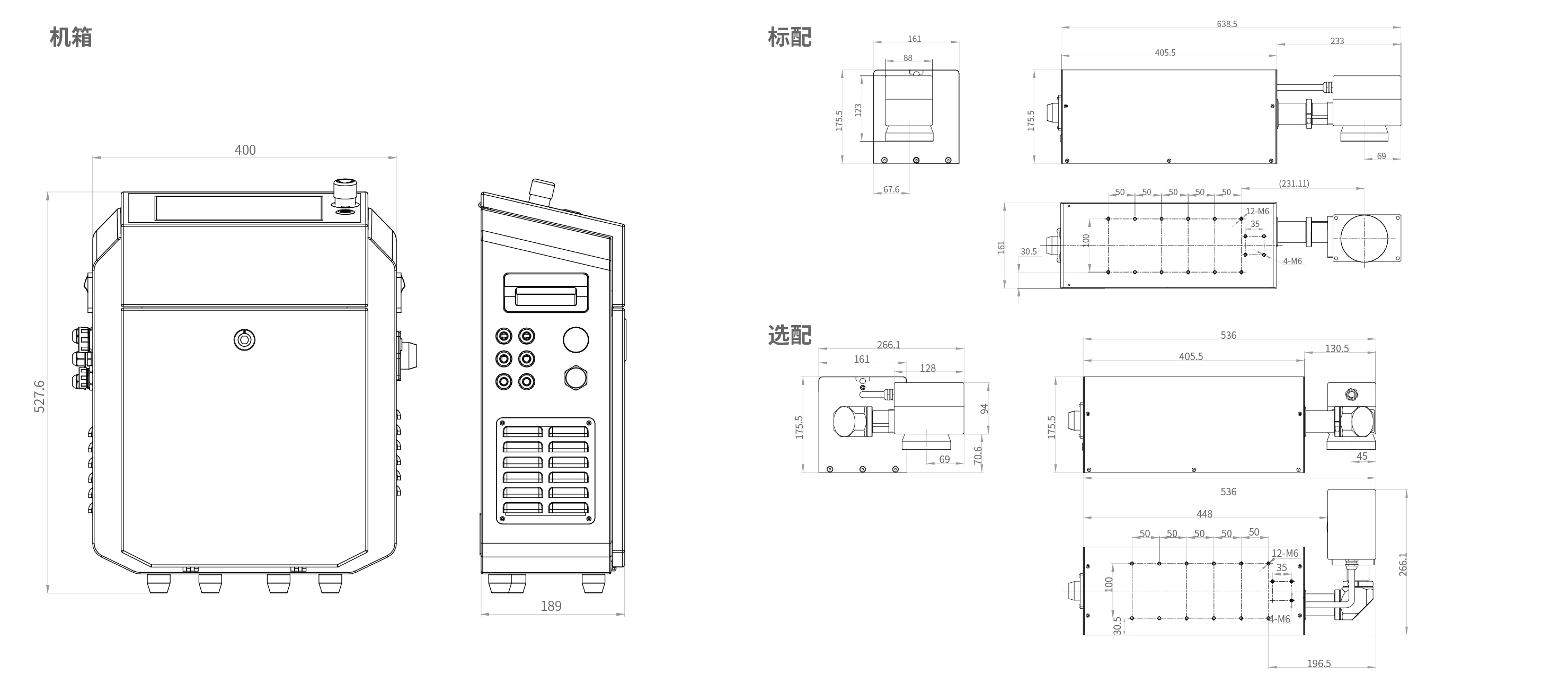

Product Dimensions (Unit: mm)
